Benefits and Features
- 60 gear cast iron transmission box, one speed, with reinforced crown pinion (group).

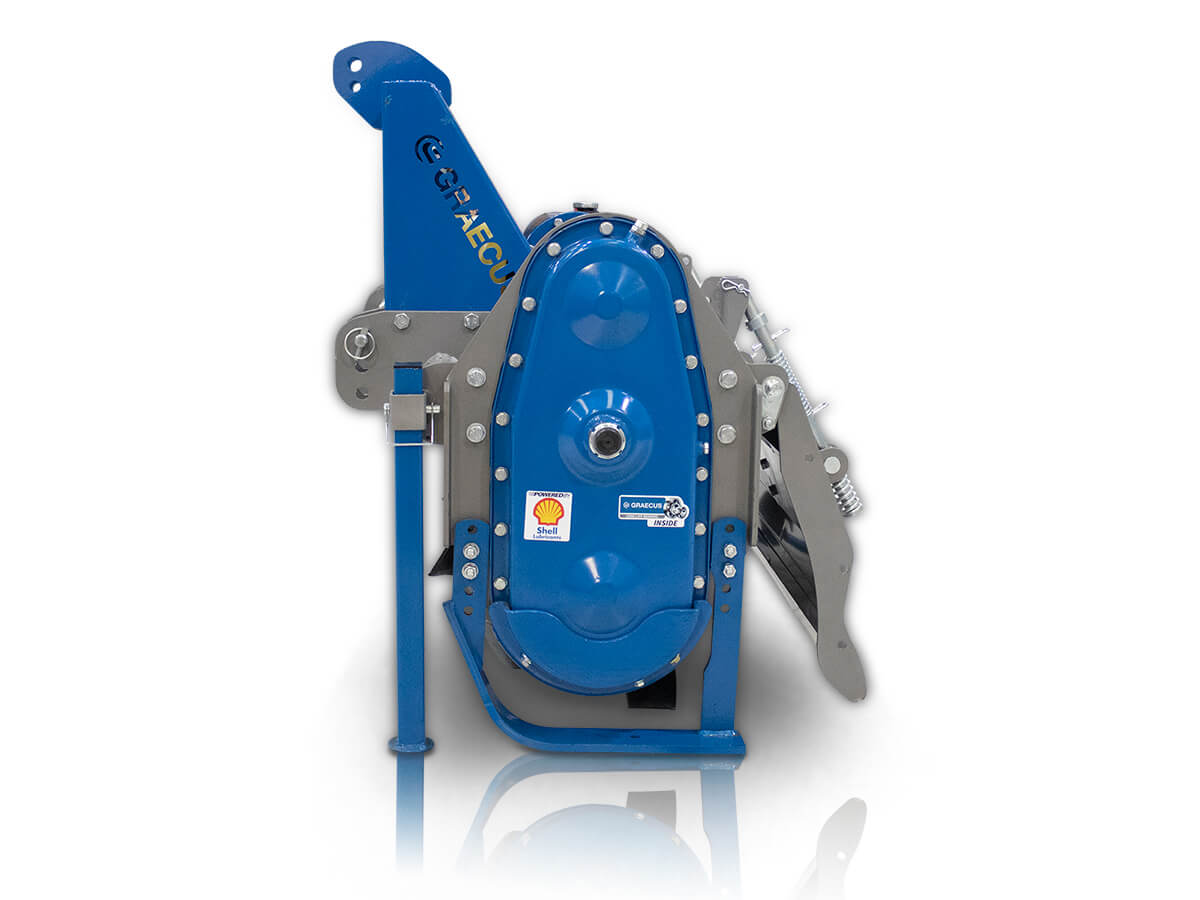

- Side drive system with gears in an oil bath.
- Long life bearings with cast iron guards.
- Cast iron protectors on the knife bearer bearings.

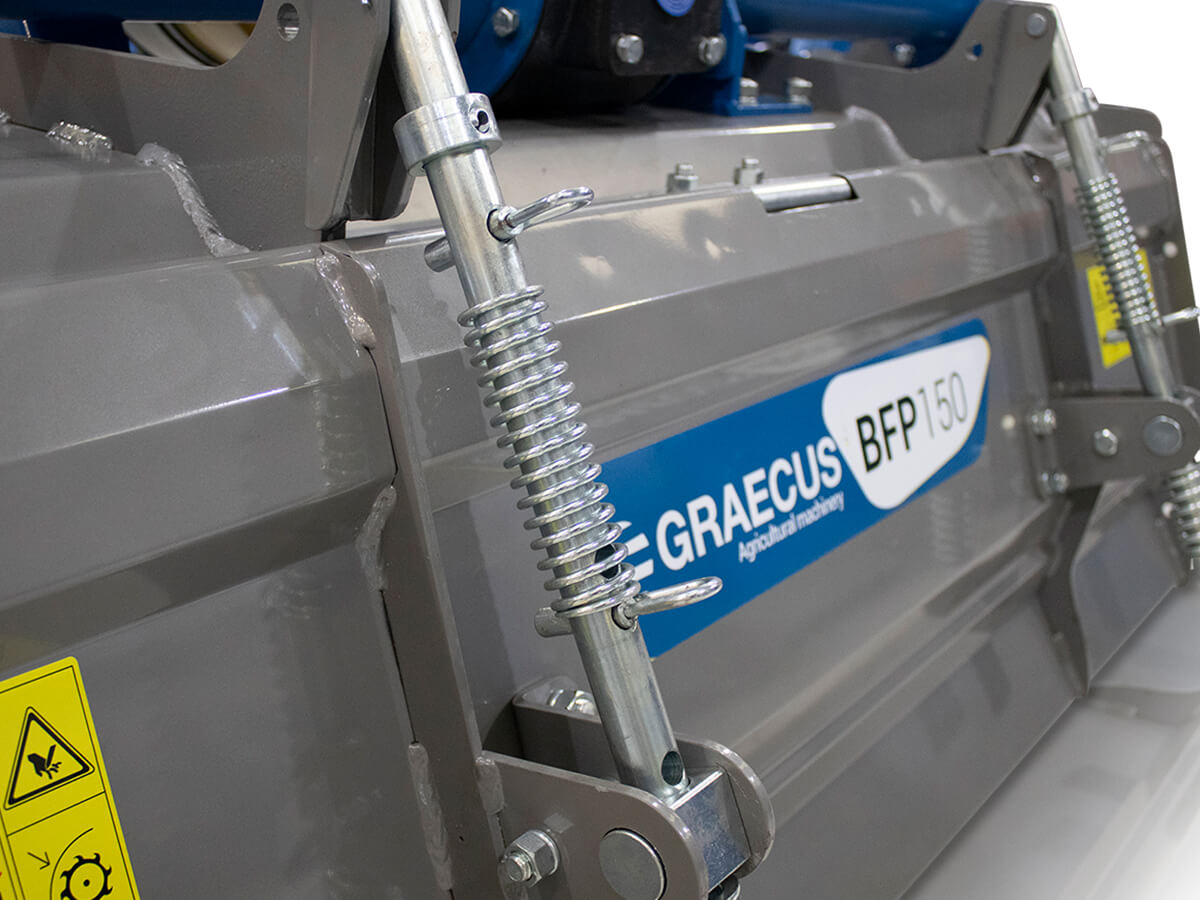

- Adjustable rear door with double springs for better leveling.
- Specially hardened knives 800g.
- Adjustment of working depth from the shoes/slides.
- Support base for easy storage.
- International three-point coupling – class I-II (o 19.0-22.0mm / 25.0-28.0mm).
- European safety certificate CE.

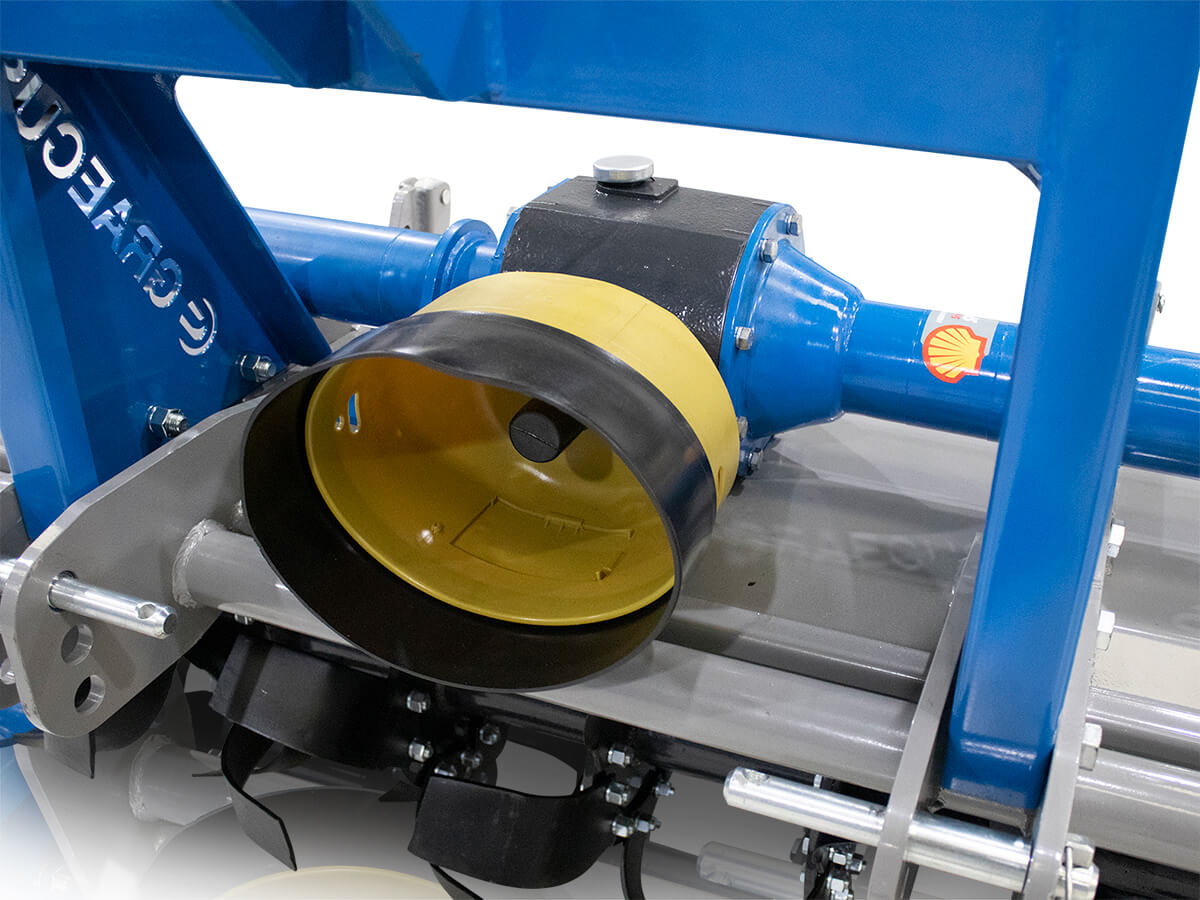

*Price includes T5-80 PTO with thermowhite clutch.*
Technical Specifications
| Weight | 468 kg |
| Horses | 50 – 90 HP |
| Width | 1970 mm |
| Length | 1050 mm |
| Height | 1160 mm |
| Work Width | 1800 mm |
| Offset | 900 || 900 |
| Knives | 27 + 27 pcs. |
| Flanges | 9 |
| Work depth | 100 – 200 mm |
