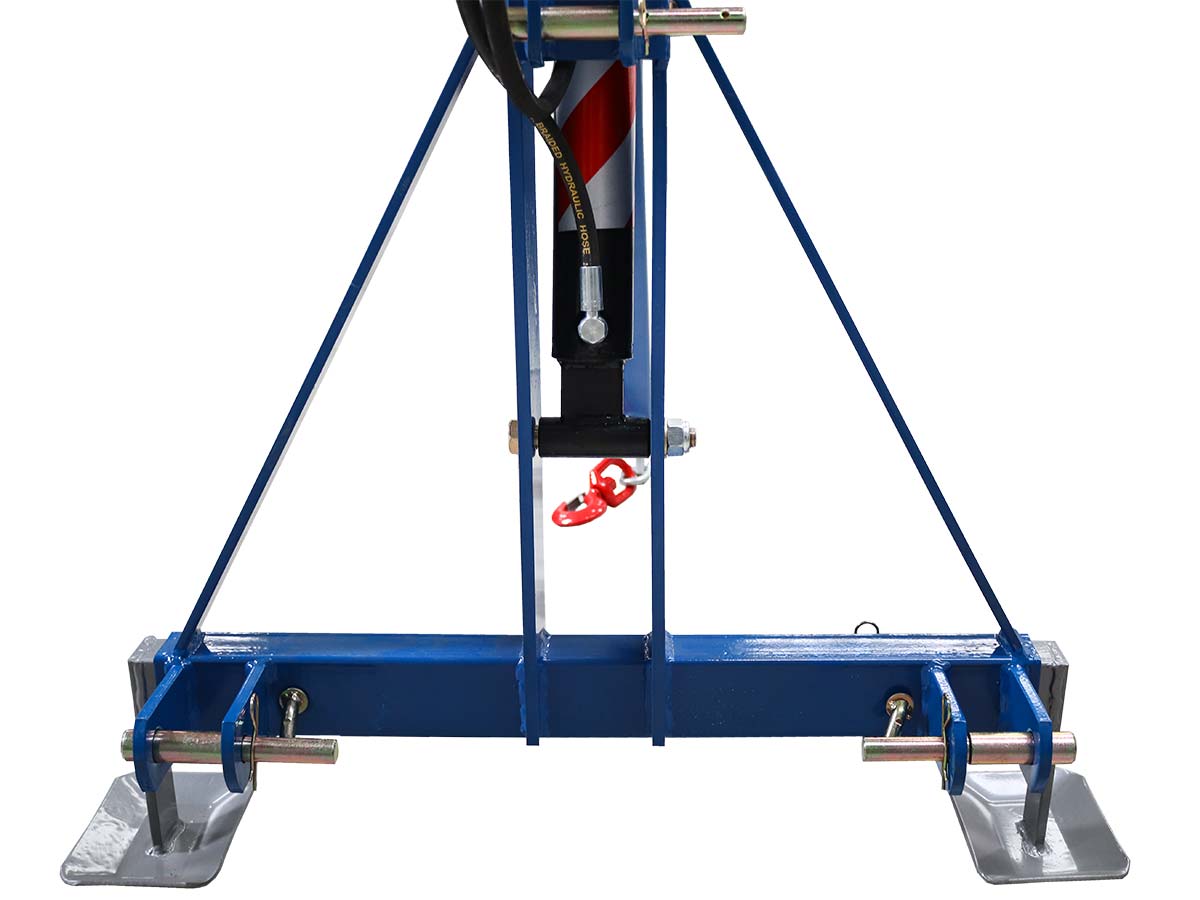

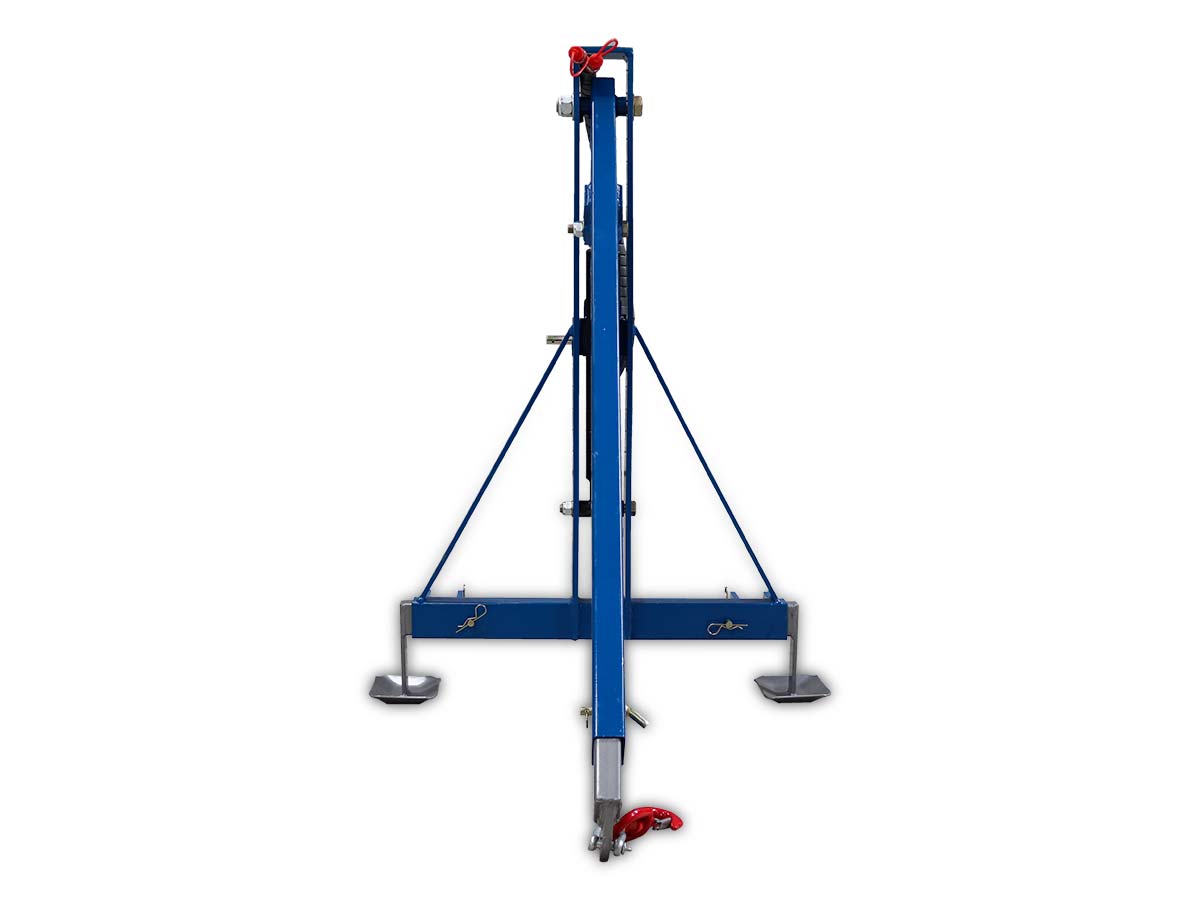

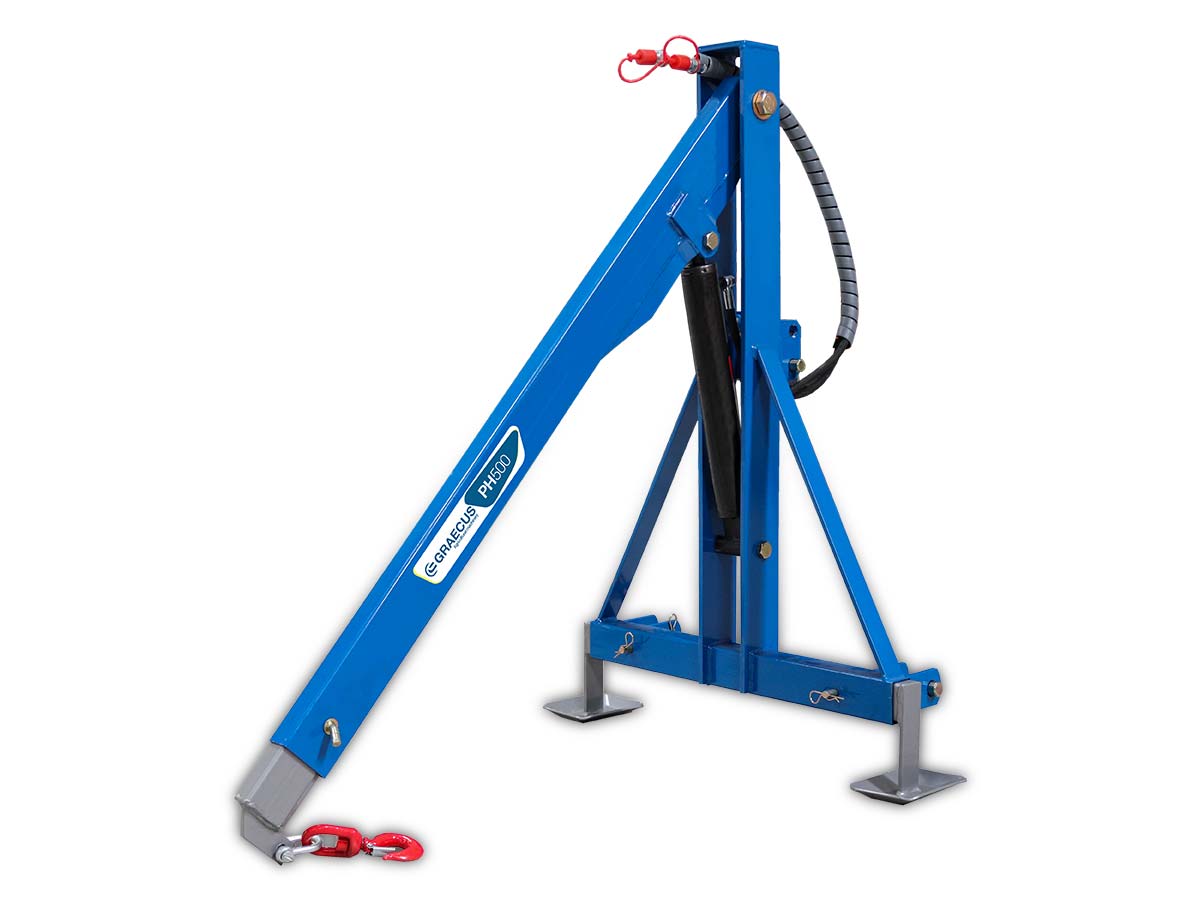

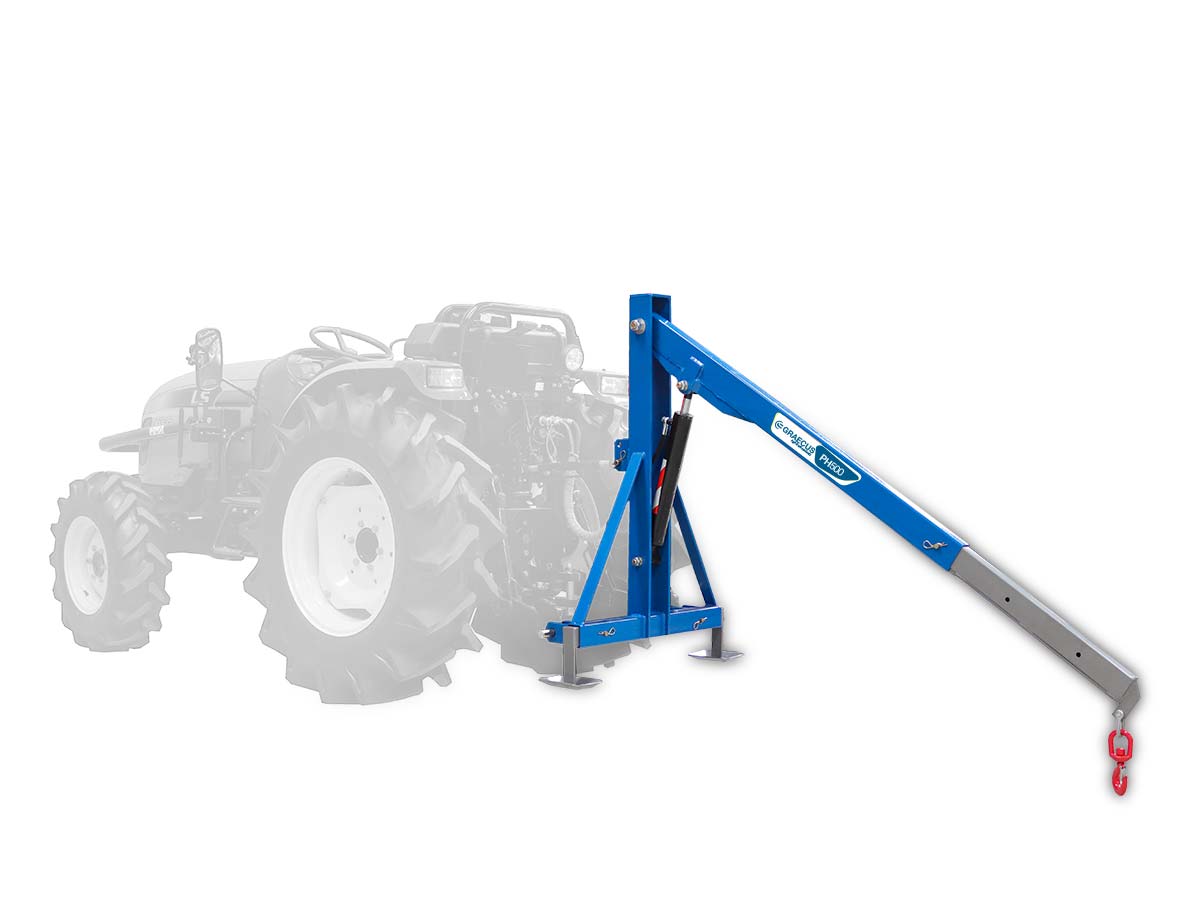

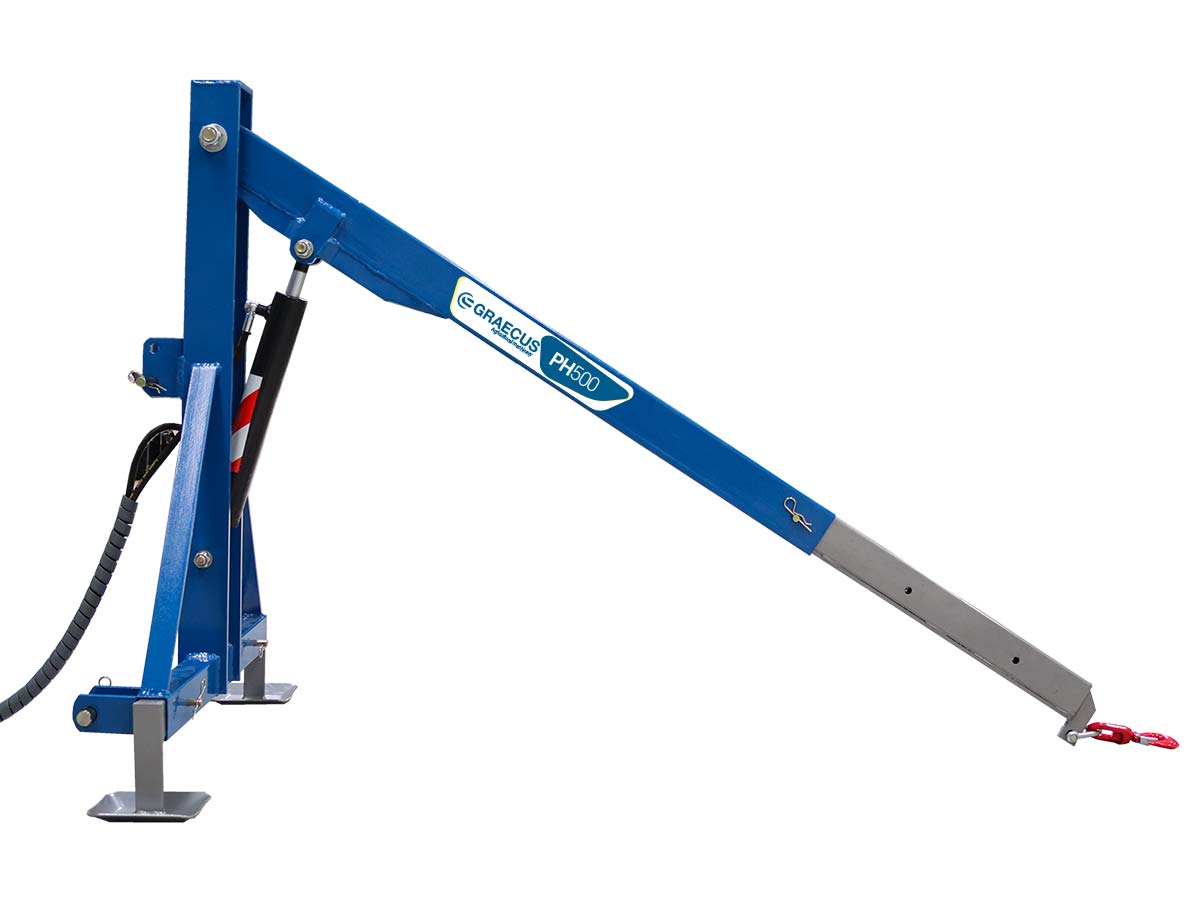

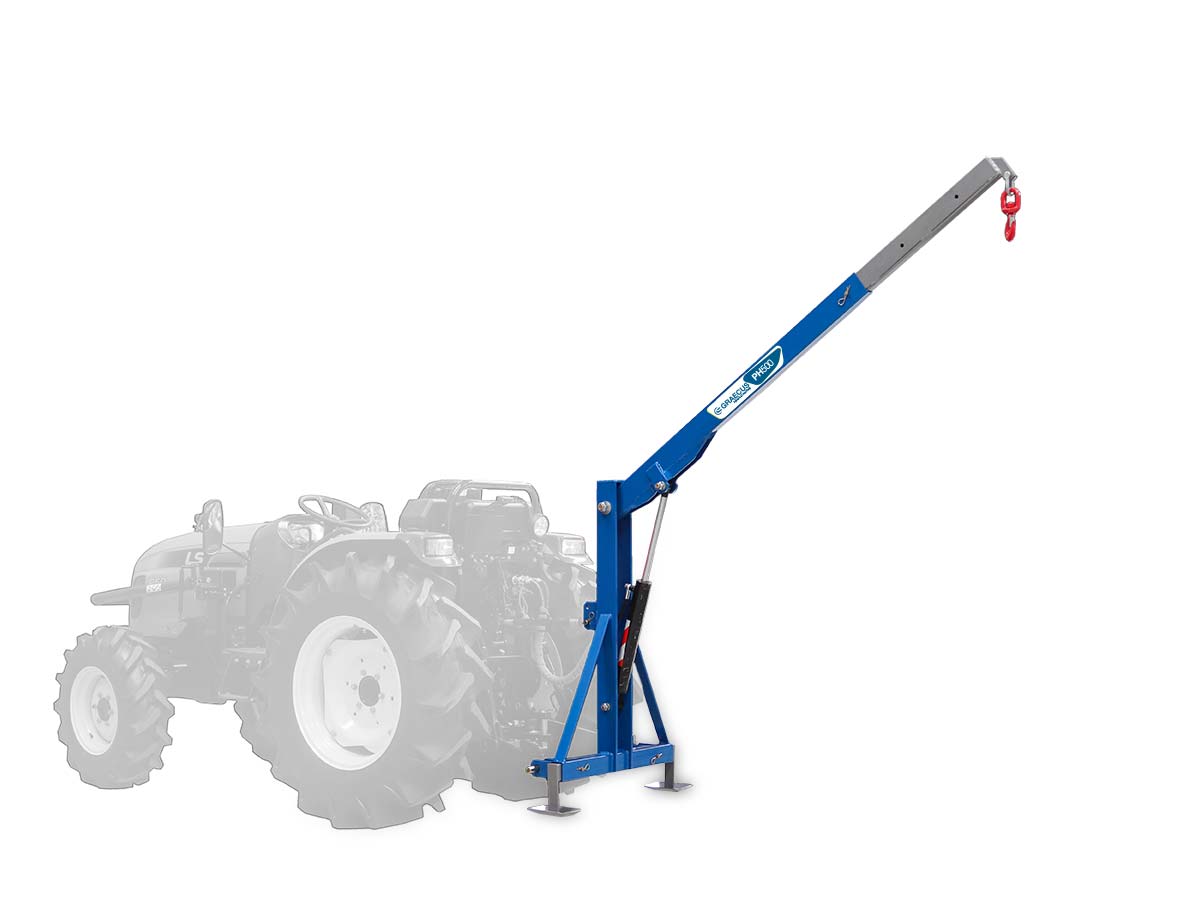

PH500 is a lifting machine that you place on the arms of the tractor. The crane ( crane) for tractors, is easily mounted on the hydraulic system of any type of tractor and is built to facilitate all lifting operations, agricultural and non-agricultural. The movement is done hydraulically, with a double energy bottle, it takes 2 waits to connect the machine. The budgie has 3 extension ladders to adjust the height, 1h-500kg, 2h-350kg, 3-350kg, 3 400;”>h-200kg. The maximum vertical height on the hook is 2.67m plus the height of the hydraulics. The hydraulic lift is made to fit most tractor models such as: LS, LG, Kubota, New holland, Landini, McCormick, Mitsubishi, Yanmar, John Deere, Same Solaris, CASE, Deutz-Fahr, Lamborghini, Carraro, BCS, Fendt, Ferrari, Goldoni, Arbos, Hurliman, Massey Ferguson, Pasquali, Valpadana, Zetor, Ursus, Kioti, Iseki, Solis, Branson and others.
Benefits and Features
- The arm has 3 extension steps.

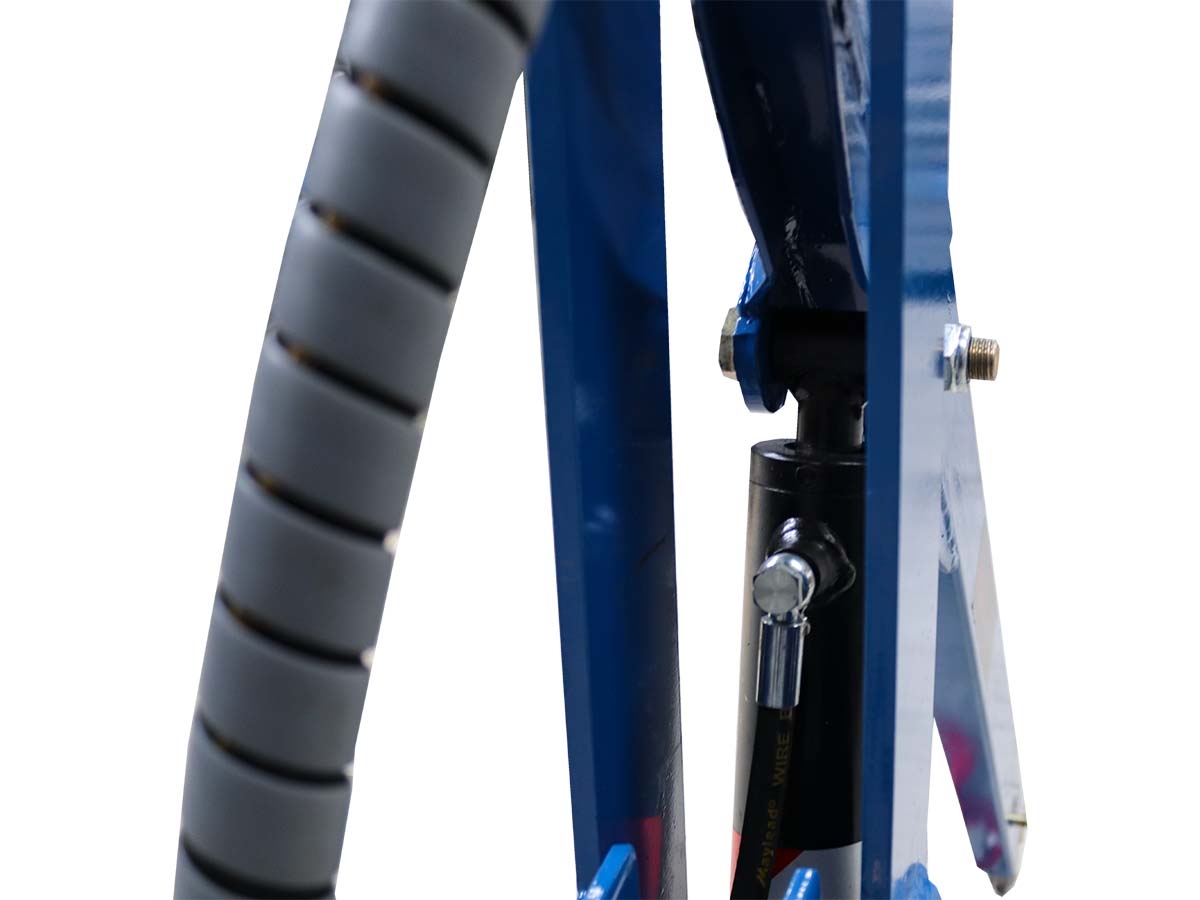

- Hydraulic lift with dual power bottle.
- Simple to use and can be easily stored when not in use.
- Reinforced at all stress points.
- Reinforced laterally to achieve heavy loading.
- Heavy type safety hook.
- Support legs provide more stability.
- International three-point hitch – Class I-II (o 19.0-22.0mm / 25.0-28.0mm).
- European safety certificate CE.
Technical Specifications
| Weight | 85 kg |
| Horses | 30 – 70 HP |
| Width | 980 mm |
| Length | 1300 mm |
| Height | 1350 mm |
| Max Height | 2668 mm |
| Liftability | 500 – 350 – 200 kg |
